Specifications

Tonnage (tons) 50

Working weight of the whole machine (kg) 50600

Bucket capacity (m³) 3.2 (rock bucket)

Boom length (mm) 6550

Arm length (mm) 3000

Performance

Swing speed (rpm) 8.3

Swing torque (Nm) 189k

Bucket digging force (kN) 293

Arm digging force (kN) 212

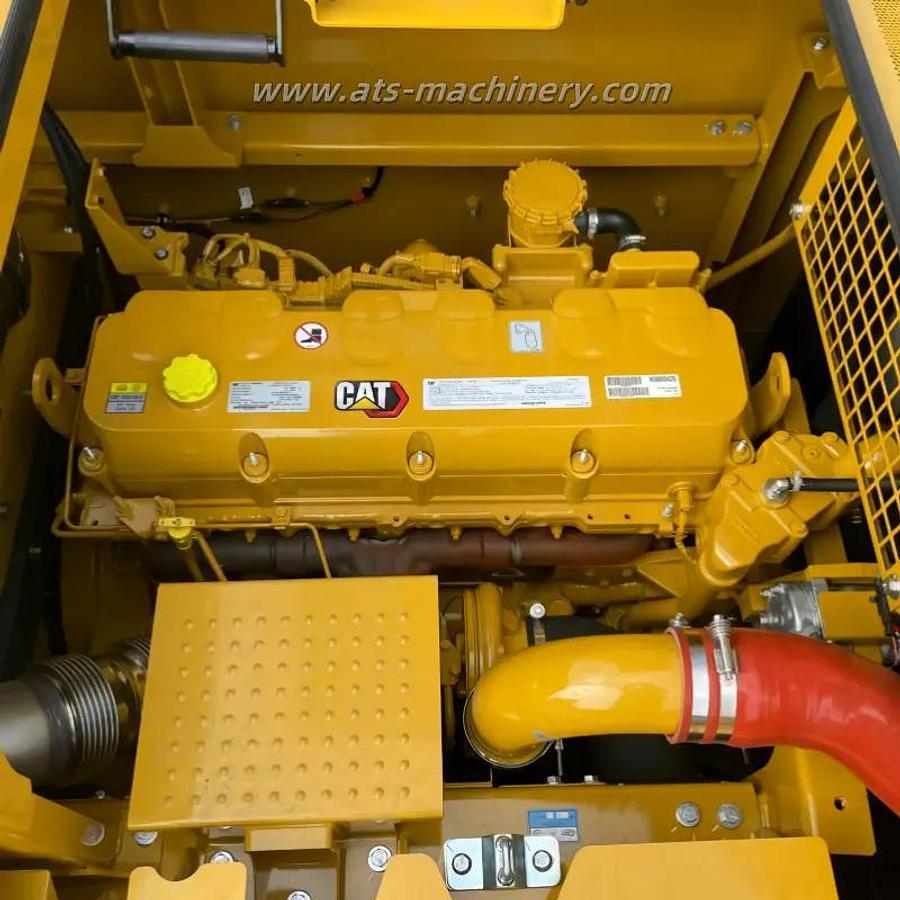

Power system

Engine model C13B

Rated power (kw/rpm) 332/1700

Displacement (L) 12.5

Cylinder diameter × stroke (mm) 130*157

Emission standard National IV

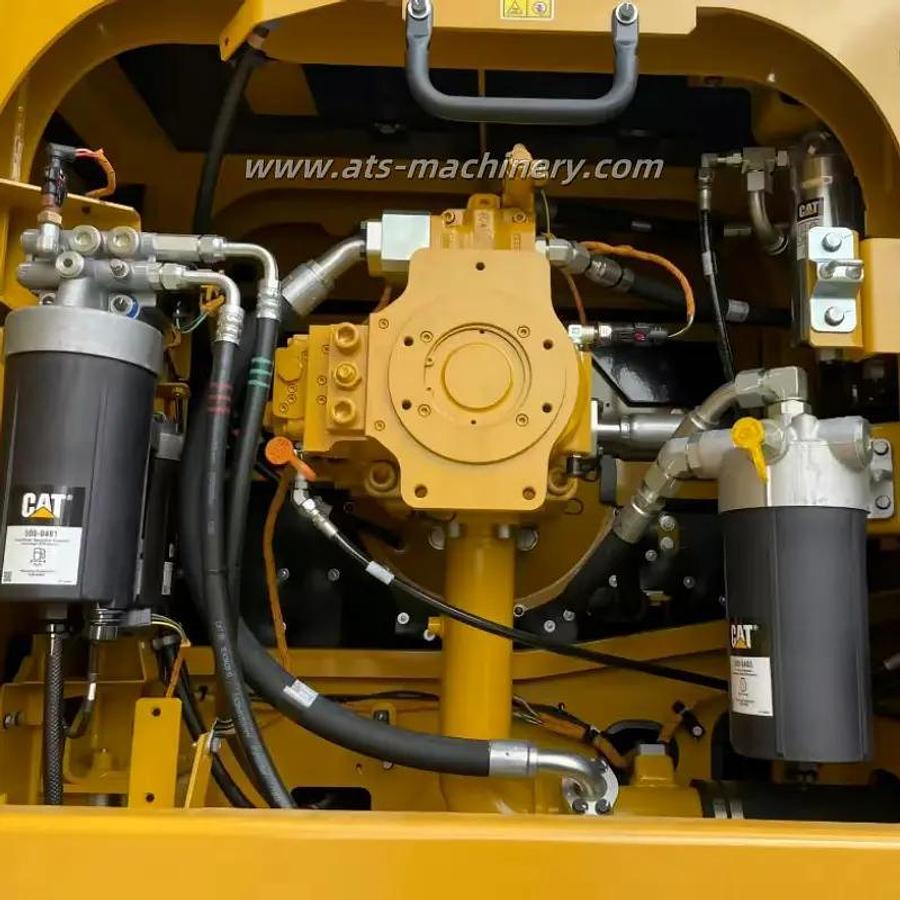

Hydraulic system

Main pump maximum flow (I/min) 779

Working hydraulic oil circuit (Mpa) 35

Travel hydraulic circuit (Mpa) 35

Swing hydraulic circuit (Mpa) 26

Oil capacity

Fuel tank (L) 715

Hydraulic oil tank (L) 217

Hydraulic system (L) 550

Engine oil change volume (L) 40

Coolant (L) 52

Main body dimensions

Total length for transport (mm) 11580

Total width for transport (mm) 3539

Total height for transport (mm) 4040

Total length of crawler tracks (mm) 5370

Shoe width (mm) 600

Track gauge (mm) 2740

Operating range

Maximum digging radius (mm) 11240

Maximum digging depth (mm) 7270

Descriptions

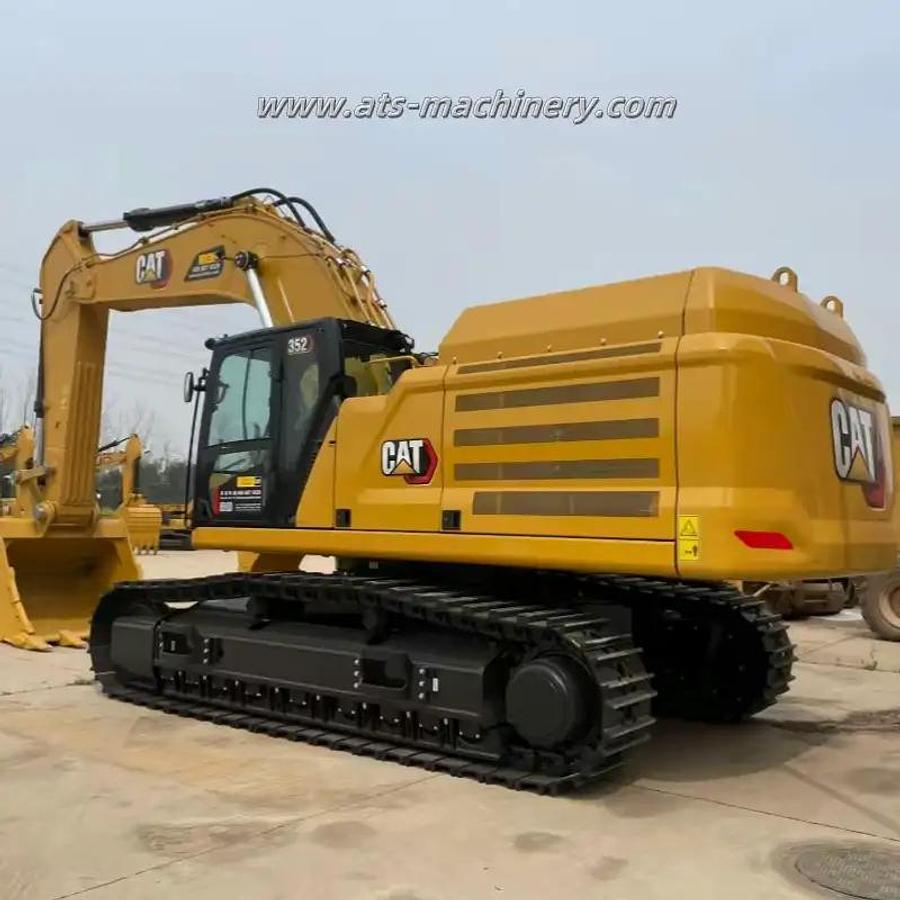

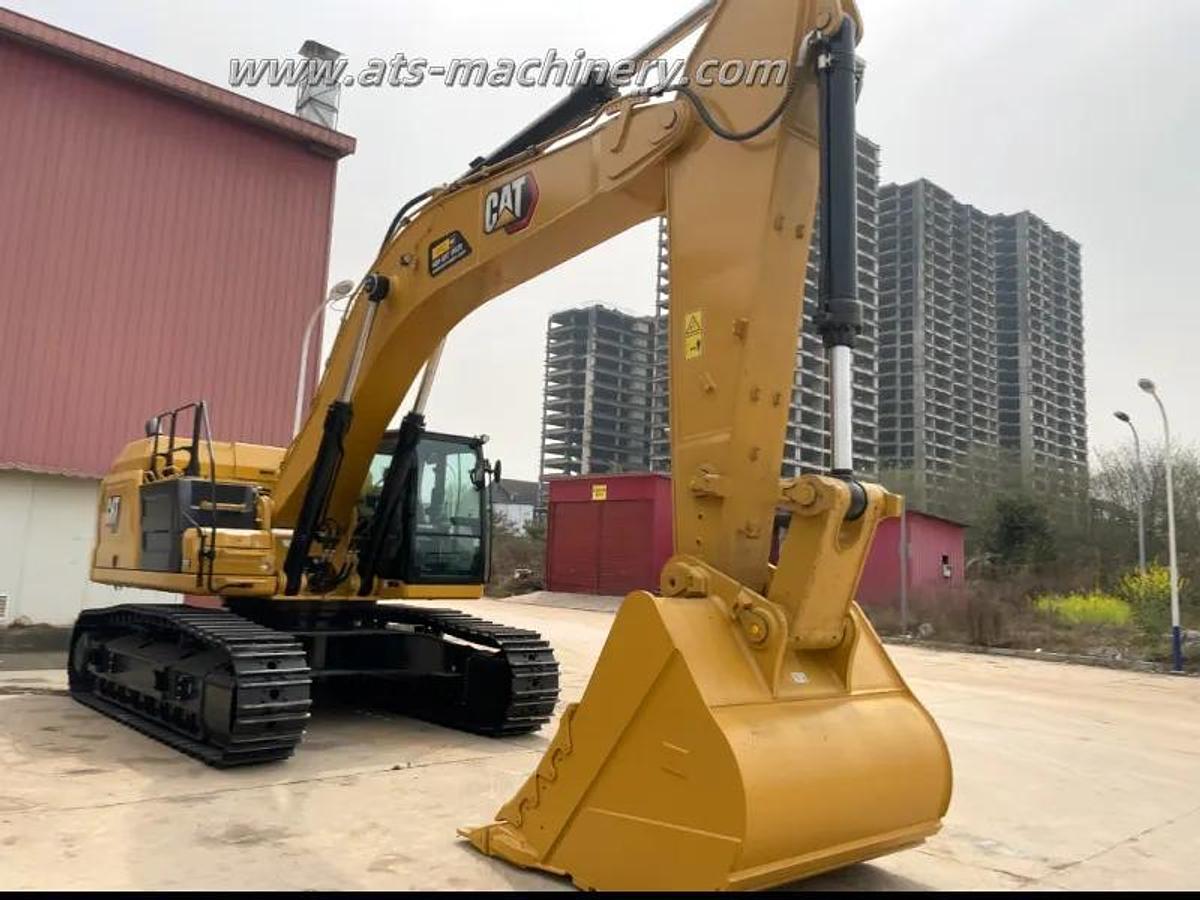

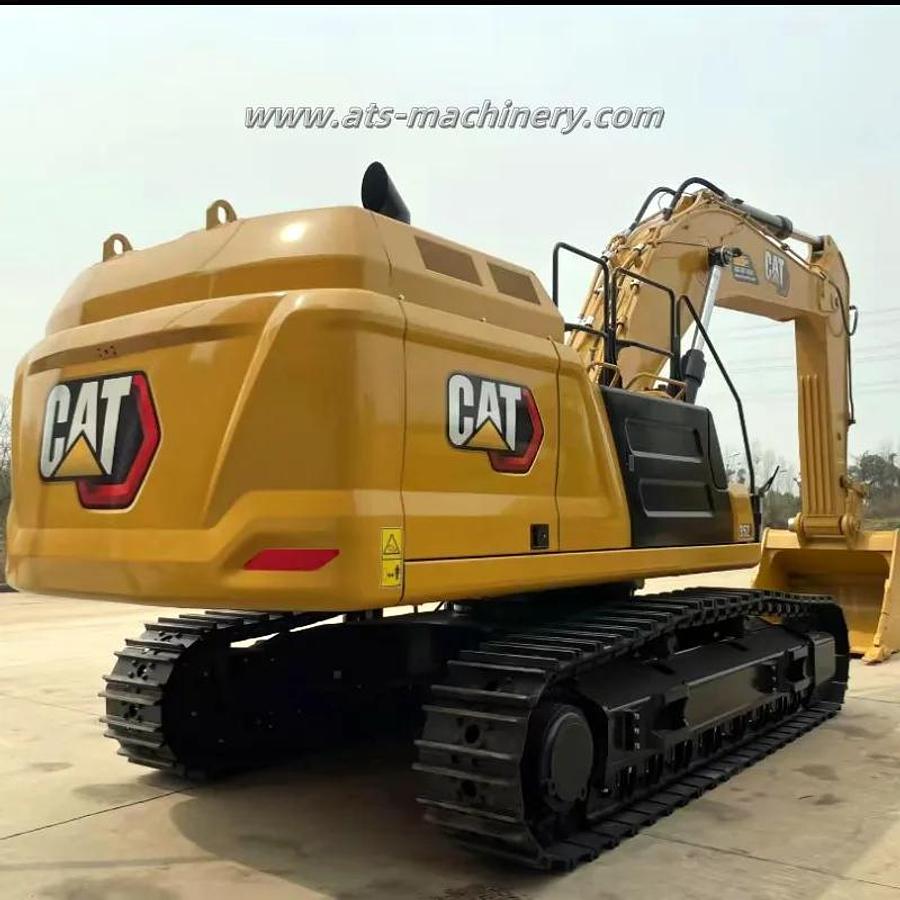

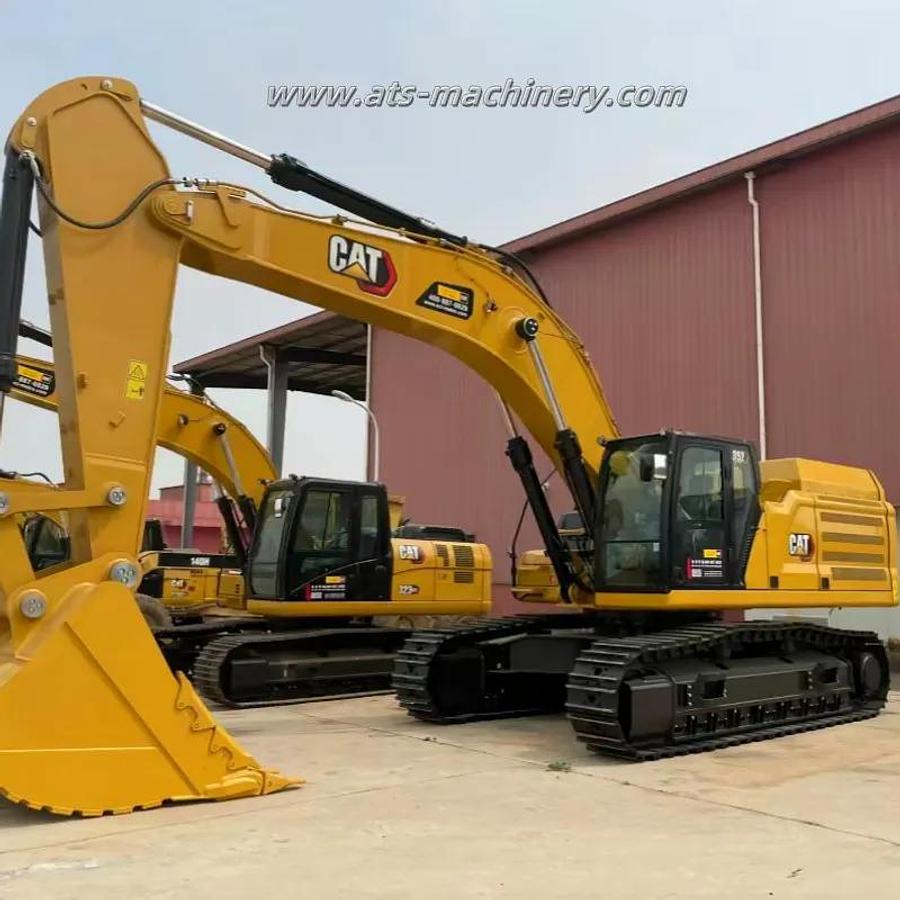

The CAT 352 Excavator is a powerful and versatile piece of heavy machinery that is used in a variety of construction and mining applications. It is a hydraulic excavator, which means that it uses high-pressure fluid to power its various functions. The CAT 352 Excavator is known for its ability to dig deep trenches, move large amounts of dirt and debris, and perform a wide range of other tasks with precision and efficiency.
