The operation video of this excavator is below the specifications. ↓

Specifications

Tonnage (tons) 5

Machine operating weight (kg) 5400

Bucket capacity (m) 0.22

Boom length (mm) 3200.0

Arm length (mm) 1500.0

Bucket width (mm) 766.0

Power Conventional power

Power system

Engine model Cat C2.4 DI

Rated power (kw/rpm) 34.1

Bore × stroke (mm) 87.0 × 102.4

Displacement (L) 2.4

Performance

Slewing speed (rpm) 10.5 min-1

Gradability (%) 50

Bucket digging force (KN) 35.0

Arm digging force (KN) 27.2

Maximum traction force (KN) 40.2

Travel speed (km/h) 4.3/2.8

Slewing torque (Nm) 13.9

Hydraulic system

Maximum flow of main pump (I/min) 140.0

Main pump type Load-sensing hydraulic system with variable displacement piston pump

Oil capacity

Fuel tank (L) 78

Hydraulic oil tank (L) 58

Engine oil change volume (L) 9.5

Coolant (L) 9.8

Hydraulic system (L) 85

Main transport dimensions

Total length for transportation (mm) 5765.0

Total width for transportation (mm) 1950.0

Total height for transportation (mm) 2540.0

Working range

Maximum digging radius (mm) 5955.

Descriptions

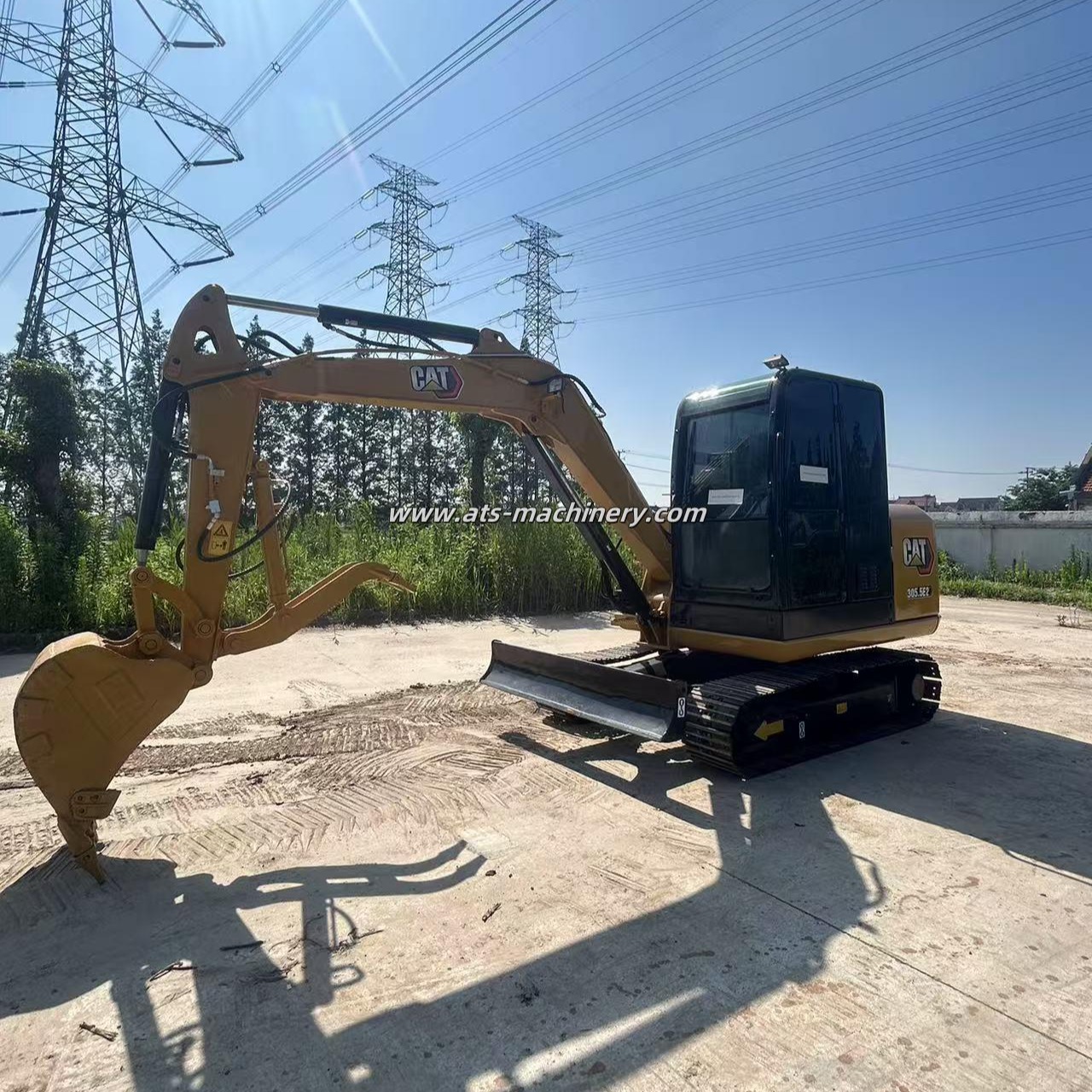

Caterpillar CAT305.5E2 mini hydraulic excavator has the advantages of portability, powerful working performance, flexible operation, comfortable cab, high efficiency and energy saving and high-quality engineering quality. It is equipped with a thumb clamp and is suitable for various small engineering construction scenarios. The second-hand excavators we provide are more cost-effective.

Video :

Used mini excavator CAT305.5E2
